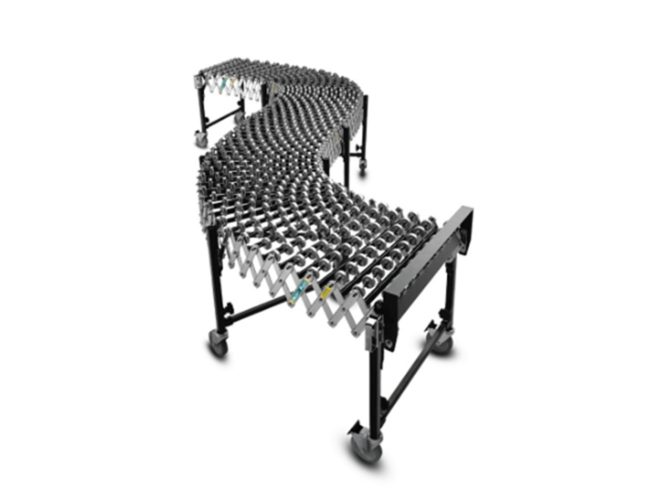

FX-200 Flex Extendable Skatewheel

Gravity Skatewheel Straight

Gravity Skatewheel conveyors are ideally used to convey lightweight packages, or when operation requires lightweight sections. Skatewheel is useful in setting up temporary conveyor lines in warehousing activities, shipping departments, assembly areas, etc.

With the Extendable Skatewheel, multiple conveyors can be conjoined for added length and flexibility.

• Overall Widths: 12″, 15″, 18″, & 24″
• Axles on 3″ or 4″ centers
• Bed – 2-1/2″ deep x 1″ flange x 12 ga. formed steel powder painted, or 1/8″ heat treated aluminum channel
• 1-15/16″ O.D. steel or aluminum wheels
• Couplings use bolts on one end, hooks on opposite end
• Capacity – Maximum load per wheel 65 lbs. steel. 45 lbs. aluminum
