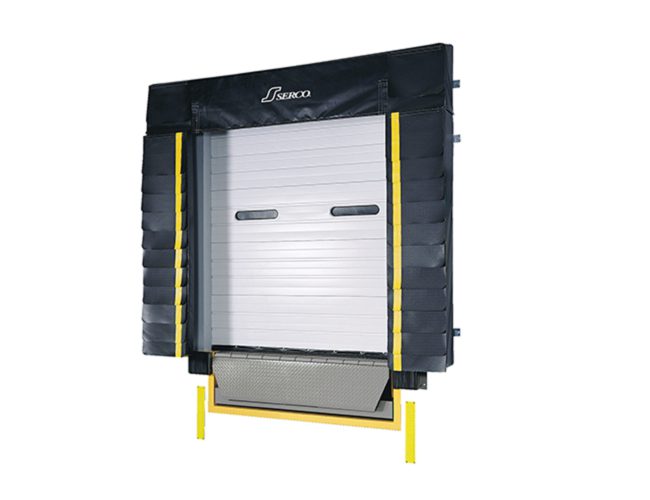

Design Highlights
- Standard side pad base projection: 16″
- Standard head member base projection: 12″
- Standard base fabric: 22 oz Vinyl
- Roll formed, galvanized steel side & head pad backing
- Available for door sizes up to 10’0″ wide
- Side pads include two triangular support wedges & bottom draft pads
- Standard side pad penetration: 12″
- Maximum side pad projection: 24″
- Standard 4″ projection difference between side pads & head member must be maintained for correct product application
- Increase “standard” unit height by 6″ when 14′ trucks are present (Western States)
